Specifications:

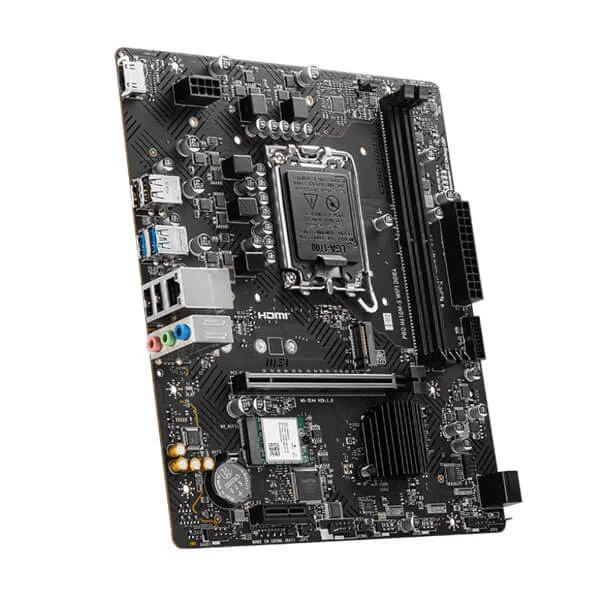

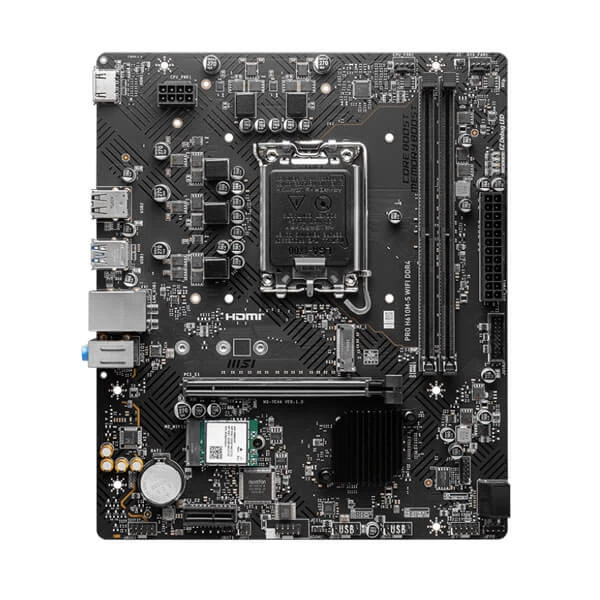

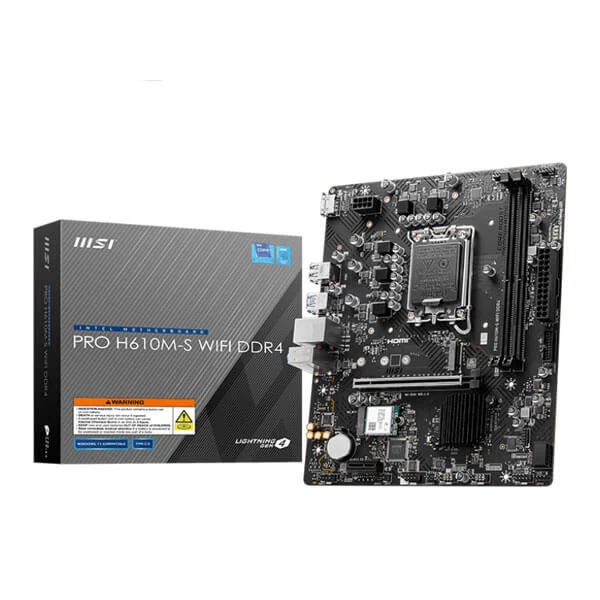

| Model Number | PRO H610M-S WIFI DDR4 |
| CHIPSET | INTEL H610 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| MEMORY | 2x DDR4, Maximum Memory Capacity 64GB 2x DDR4, Maximum Memory Capacity 64GBMemory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDECSupports Dual-Channel modeSupports non-ECC, un-buffered memory |
| AUDIO | Realtek® ALC897 Codec Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| STORAGE | 1x M.2 1x M.2M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices2x SATA 6G |
| LAN | Realtek® RTL8111H Gigabit LAN |
| ONBOARD GRAPHICS | 1x HDMI™ 1x HDMI™Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz |
| SLOT | 1x PCI-E x16 slot 1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front) |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports |
| LED FEATURE | 4x EZ Debug LED |

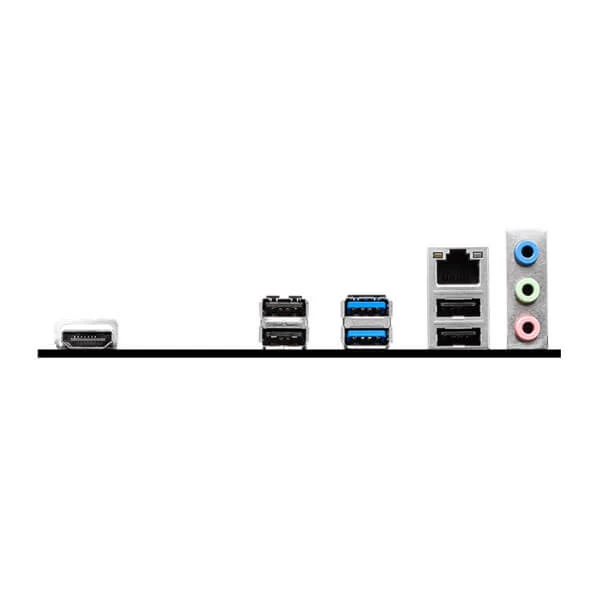

| BACK PANEL PORTS | HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 LAN port Audio Connectors USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO | mATX 200mmx236.16mm |
