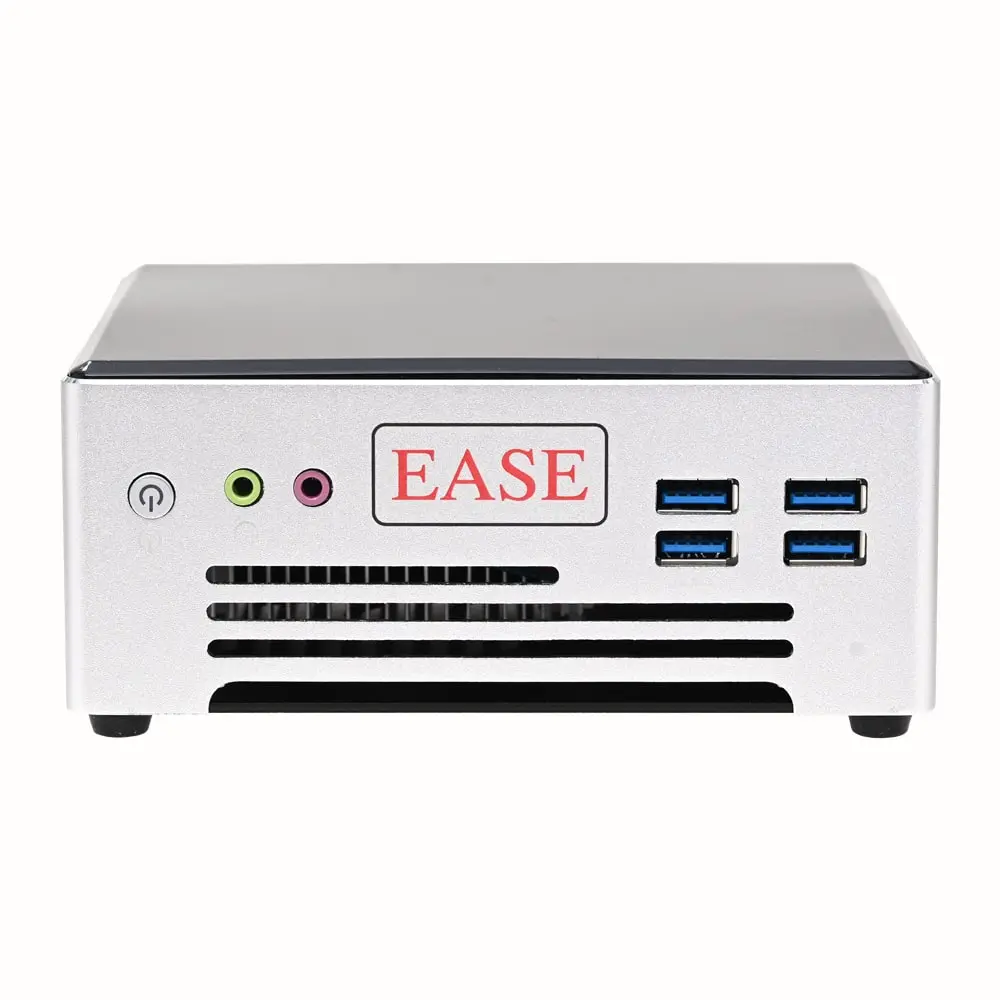

EASE Mini PC Intel Core i5-1145G7 Supports Up to 64GB DDR4-3200

EASE Mini PC Intel Core i5-1145G7 Supports Up to 64GB DDR4-3200

₨ 93,199

PRODUCT HIGHLIGHTS:

  • Space-saving design: can be fixed to the back of a monitor with supplied mount screws
  • Powerful performance in a compact form factor
  • Rich interfaces: USB, DP, HDMI, 2 LAN, MIC, SPK, etc. for connecting more devices
  • Ultra-quiet aluminum cooling fan for efficient heat dissipation
  • 2x SODIMM DDR4 memory slots with up to 64GB for fast performance
  • Versatile use-cases: office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.
Categories: ,
EASE
Brand
CPU: Onboard 11th Gen 10nm CPU Comet Lake Intel Core i5-1145G7 4 cores 8 threads 2.4GHz up to 4.2GHz 6MB cache TDP 12W Intel Iris Xe Graphics   Basic Information

CPUOnboard Intel Core i5-1035G4 / i7-1065G7 / i7-1165G7 / i3-1135G7
TDPRefer to the above CPU
Level 2 CacheDepend on CPU
Motherboard140 * 130 mm customized size
ChipsetIntel Xeon E3 – 1200 v6/7th Gen Intel Core / DRAM Registers – 5910 – 100 Series/C230 Series
Memory2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB/64GB DDR4-2400, LPDDR3-2133, DDR3L-1600
OSWindows 10/Linux
PXEYes
AudioIntel High-Definition Audio Controller
Network2 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN
VideoRefer to the above CPU.

Wi-Fi:

Module1 x M.2 NGFF 2230 slot for Wi-Fi(Built in Wi-Fi) & Bluetooth module.
Antenna2 x inner RF cables and without external antenna

Power and Working Environment:

Input100-240V AC/50-60Hz
OutputDC +12V~+19V, recommend 12V/5A default (add extra cost to get 19V/4.74A)
Operating Temperature0/70 Centigrade
Relative Humidity10% ~ 85%
Input/Output Port:

Switch1x Power On/Off Switch
Power1x Power in
USB6x USB 3.0
Display1 x DP1.2, 1 x HDMI1.4, support 4K@30Hz!
LAN2 x RJ45 Giga LAN
Audio1 x MIC, 1 x SPK

  Storage:

M.21 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(NVME/SATA)
MSATA1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s

  Product Dimension & Details:

Size137*150*61mm
WeightNet 0.9kg, Gross 1.4kg
ShellBlack color PVP top and Silver aluminum alloy body
Cooling ModeAn ultra-quiet aluminum cooling fan
FunctionsPXE, Power On AC, RTC

  Package Content:

Standard1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional1xHDMI cable, 1xUser Manual
